PHLOX® WHITE LED BACKLIGHT FOR 4ATI LCD
New Generation: Higher Luminance & Longer Life cycle

  • 4ATI Backlight
  • PHLOX® Backlights excel in Civilian and Military Airplanes "First of all, our clients have confidence in the intrinsic qualities of our products, their efficiency and low consumption of energy, obviously their luminance as well as their uniformity, their longevity and compact size… Finally, our capacity to rapidly create prototypes (less than 6 weeks from design to manufacturing) is often a decisive factor.”
24

to 48H quote

5 weeks delivery for custom sizes:
Bespoke solutions for perfect integration in your system

All custom sizes possible up to 20"
NVIS (subject to export licence) or NON NVIS | Civilian & military applications

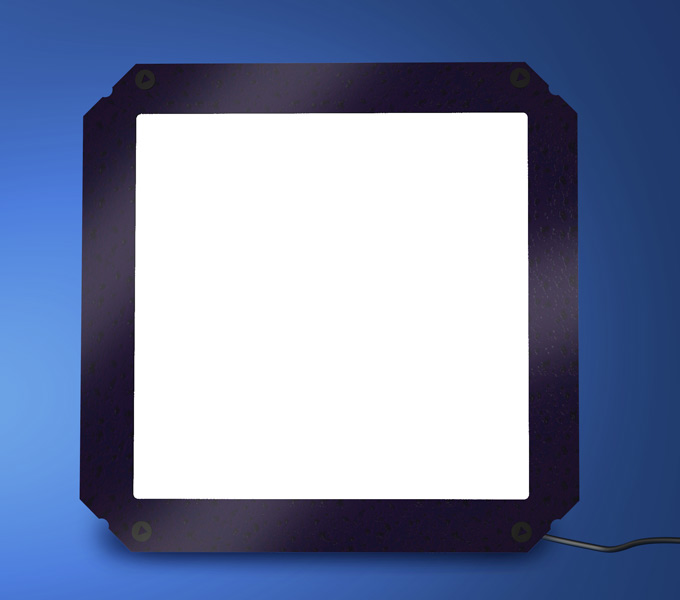

White LED Backlight for 4ATI LCD

  • Higher luminance on the backlight (1)
    7.000 cd/m2 (typical)
    12.000 cd/m2 (max)

  • Luminance through LCD (1)
    770 cd/m2 (typical) (11%)

  • Uniformity minimum: ≥85% (±10%)

  • Colour temperature: 5000° K (±1000)

  • Expected life > 50.000 hours
    (with typical luminance)

  • Outer unit LxWxH: 98 x 98 x 11 mm (3.85 x 3.85 x 0.43")

(1) Typical luminance in day mode

* ROHS - Except derogation

Each Aerospace PHLOX® Backlight is provided with:
- Certificate of uniformity and luminance
- Seal of quality on the back
- 36 months warranty

WORLDWIDE PATENTS ISSUED
