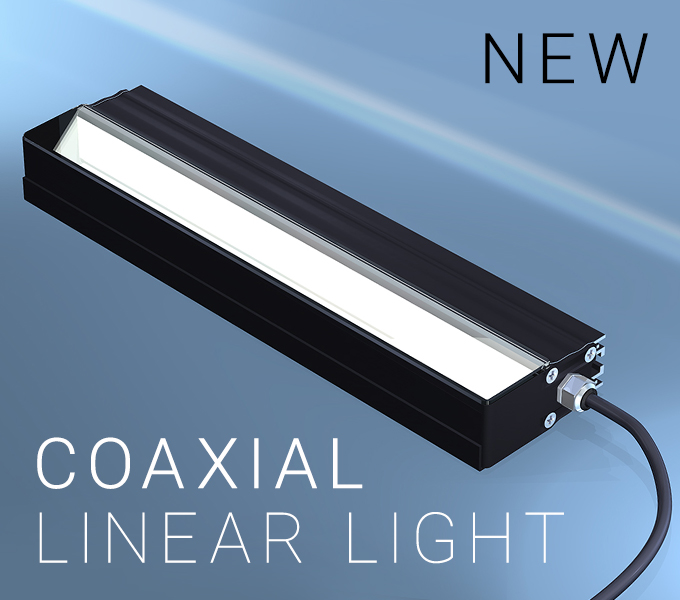

PHLOX® WHITE COAXIAL LINEAR LIGHT
On-axis linear lighting for large surface inspection, print inpection…

  • COAXIAL LINEAR LIGHT FOR SURFACE INSPECTION

    PHLOX® Coaxial Linear light range | 18 sizes (D) from 92 to 554mm x 58.3 x 26.6mm | from 3.62 to 21.8 x 2.3 x 1.05"

  • COAXIAL LINEAR LIGHT FOR SURFACE INSPECTION

    PHLOX® Coaxial Linear light range | 18 sizes (D) from 92 to 554mm x 58.3 x 26.6mm | from 3.62 to 21.8 x 2.3 x 1.05"

Coaxial Linear lights by PHLOX® are ideal for inspecting flat and reflective surfaces, such as metal sheets, glass and semiconductor wafers. They help in detecting surface defects like scratches, pits, and contaminants. All in a compact black anodized aluminium body.

Main applications: Surface Inspection, Print Inspection, Measurement and Metrology, OCR and Barcode Reading, Surface Texture Analysis: detecting inconsistencies in textiles, paper, and plastics. Pharmaceutical Inspection, Wafer inspection, Die bonding…

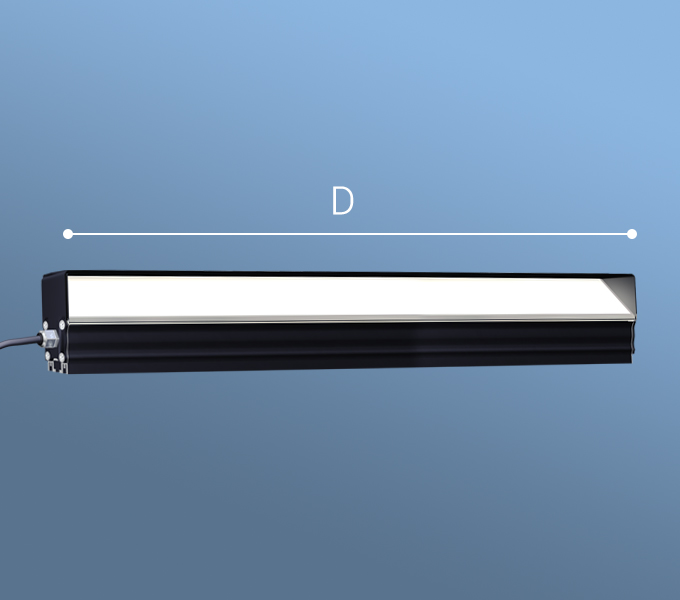

  • Available in 18 standard sizes (mm): from 92 to 554mm x 31 x 24.5mm
    D = 92 | 119 | 146 | 173.5 | 200.5 | 227.5 | 255 | 282 | 309 | 336 | 363 | 390.5 | 417.5 | 444.5 | 471.5 | 498.5 | 525.5 | 554
  • Available in 18 standard sizes (inches): from 3.62 to 21.81 x 1.22 x 0.96"
    D = 3.62 | 4.68 | 5.75 | 6.83 | 7.89 | 8.96 | 10.04 | 11.10 | 12.16 | 13.23 | 14.29 | 15.37 | 16,44 | 17.5 | 18.56 | 19.63 | 20.69 | 21.81


Phlox® White Led
Coaxial Linear light

  • Electrical 24V on standard (1)
  • Illuminance at 20mm (min) ≥50.000 lux (2)
  • Uniformity minimum ≥90% (±10%)(Xx4mm)
  • Colour Temp. 5.700°K (± 500)
  • All sizes possible up to
    1 linear meter / 39.37 linear feet
  • IP40 (IP65 on request)
  • Expected life > 100.000 hours
(1) Strobe mode only with CUR version
(2) continuous mode

!

Short time quote, 5 weeks delivery

Each PHLOX® Coaxial Linear Light is provided with:
- 24 months warranty

CLASS 1: LOW RISK
(CIE S2009:2002/NF EN 62471
