PHLOX® LLUB GREEN LED BACKLIGHTS
Less than 10% chromaticity shift after 100 000 hours!

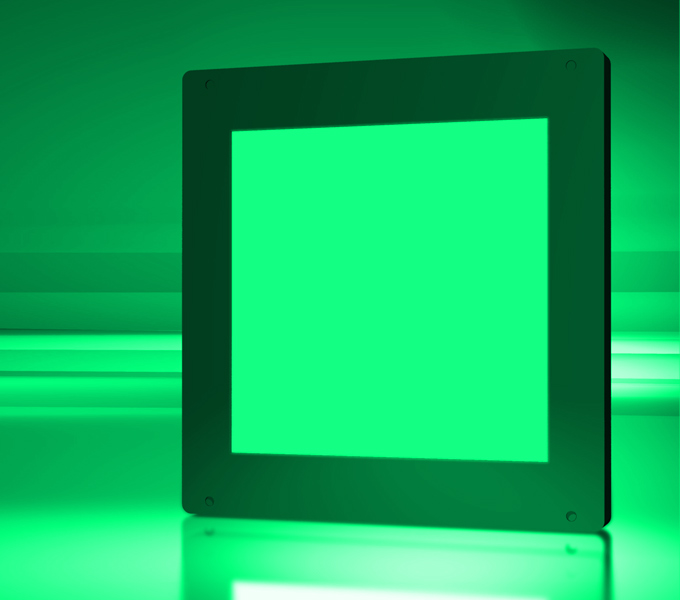

  • Green LLUB 100x100

    Green LED LLUB Backlight | 100x100mm | 3.94x3.94"

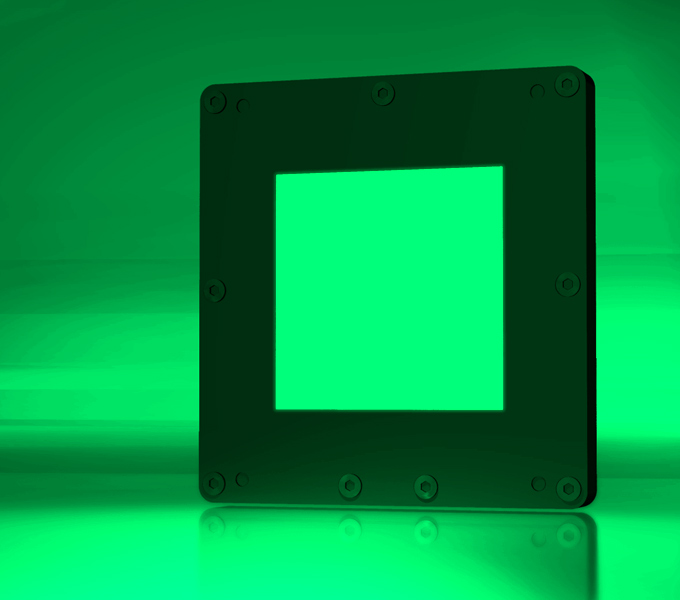

  • Green LED LLUB 50x50

    Green LED LLUB Backlight | 50x50mm | 1.97x1.97"

  • Available in Standard sizes (mm): 50x50 | 100x100 |
  • Available in Standard sizes (inches): 1.97x1.97 | 3.94x3.94 |
  • Custom sizes:  All sizes possible from 20x20 mm / 0.79x0.79" to  500x500 mm / 19.7x19.7"
24

to 48H quote and delivery

LLUB Green Backlights

Green LED - Long Lasting Ultra Bright

  • Higher luminance (1)
    ≥ 50.000 cd/m2      (50x50mm)

    Less than 20% luminance loss after 100.000 hours (3)

    Less than 10% chromaticity shift after 100.000 hours (3)

  • Better uniformity (1) ≥95% (±10%) (2)
  • Wave length 525 nm (±5 nm)
  • Expected life > >100.000 hours
  • Ultra slim housing 8.5mm/0.334" (2)
(1) continuous mode
(2) on standard sizes
(3) room temperature = 20°C

Each PHLOX® Backlight is provided with:
- Certificate of uniformity and luminance
- Seal of quality on the back
- 24 months warranty

WORLDWIDE PATENTS ISSUED
