PHLOX® RGB LED BACKLIGHTS
All RGB colors combinations possible!

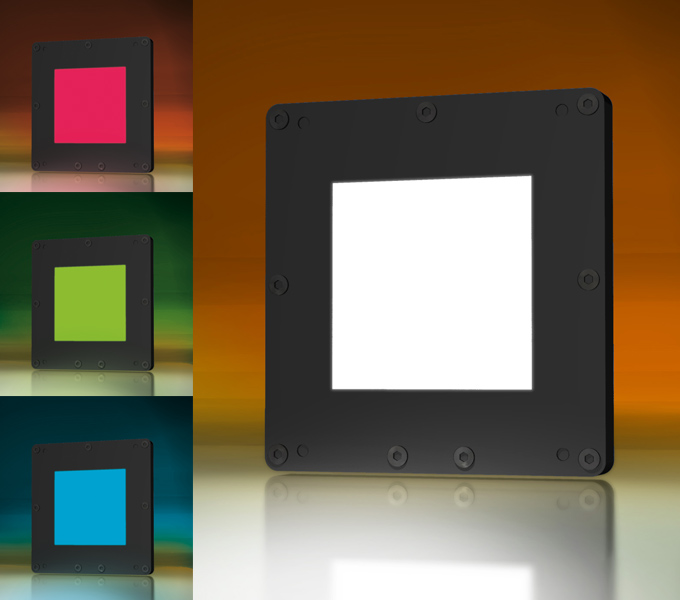

  • RGB50x50

    RGB LED Backlight | 50x50mm | 1.97x1.97"

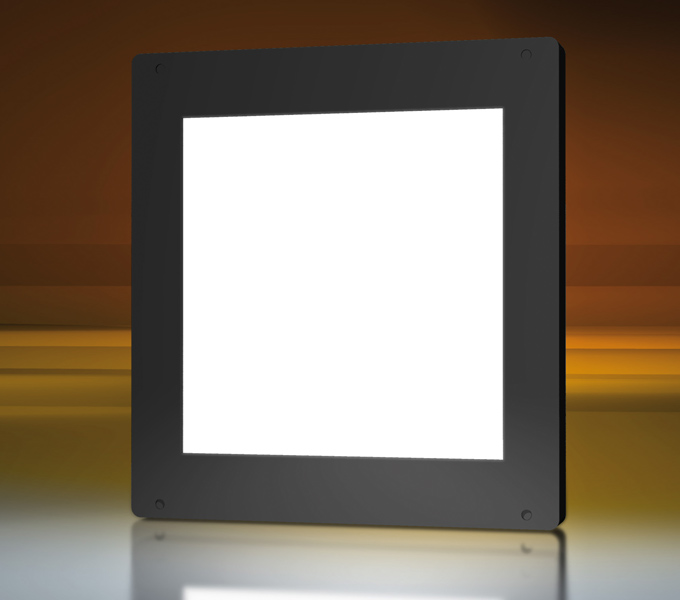

  • Red RGB100x100

    RGB LED Backlight | 100x100mm | 3.94x3.94"

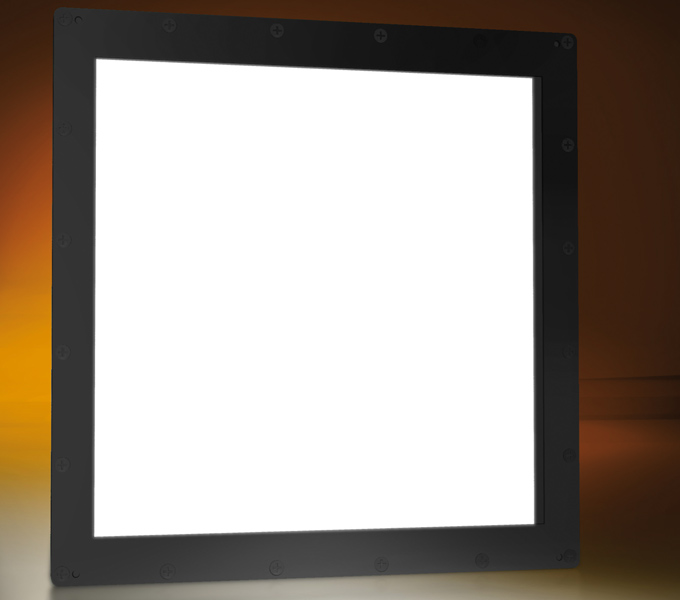

  • RGB200x200

    RGB LED Backlight | 200x2000mm | 7.87x7.87"

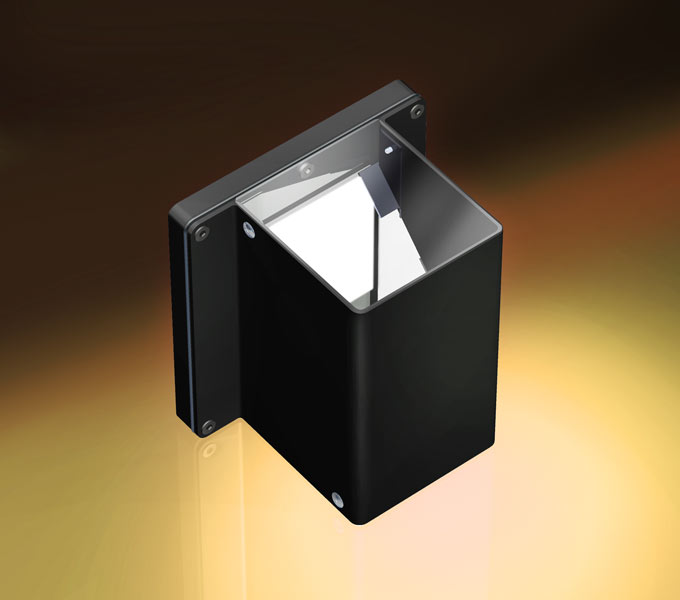

  • RGB On Axis

    RGB Backlight also available in our On Axis range

  • Available in Standard sizes (mm): 50x50 | 100x100 | 200x200 | ON AXIS |
  • Available in Standard sizes (inches): 1.97x1.97 | 3.94x3.94 | 7.87x7.87 | ON AXIS |
  • Custom sizes: All sizes possible up to: 500mm/19.685"
24

to 48H quote and delivery

RGB LED Backlights

Red + Green + Blue + White


  • Higher luminance

    R: 2.000 cd/m2 to 6.000 cd/m2
    G: 4.000 cd/m2 to 10.000 cd/m2
    B: 300 cd/m2 to 900 cd/m2
    W: 6.300 cd/m2 to 16.900 cd/m2


  • Better uniformity (1) ≥95% (±10%) (1)
  • Ultra slim housing 8.5mm/0.334" (2)
(1) continuous mode
(2) on standard sizes

Each PHLOX® Backlight is provided with:
- Certificate of uniformity and luminance
- Seal of quality on the back
- 24 months warranty

WORLDWIDE PATENTS ISSUED

OTHER PHLOX® PRODUCTS FOR MACHINE VISION
